Silicon Nitride Ceramic Spot Welding Pin
手机查看产品 浏览量: 0产品类别

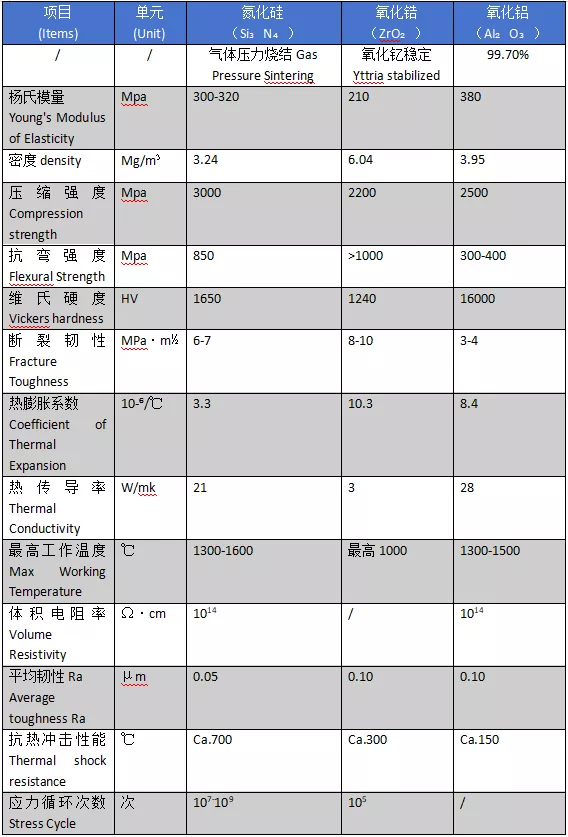

材料及含量
产品特点
This silicon nitride ceramic locating pin is sintered under 100 bar atmospheric pressure and is made of a high-strength material with excellent properties.
Preferred for welding applications:
- Ultra-high hardness and bending strength.
- High thermal shock resistance.
- Electrical insulation.
- High temperature resistance.
- High tensile and compressive strength.
- Less cold welding.
- No welding spatter adhesion.
产品详情
Silicon nitride ceramic locating pins can withstand harsh projection welding conditions, offering high efficiency and extended service life.
The service life of commonly used ceramic welding pins is 40 times longer than that of metal pins, and silicon nitride ceramics have a service life five times longer than that of zirconia locating pins. They achieve high precision and accuracy during prolonged projection welding and can withstand temperatures up to 1000°C.
Application Areas:
In the automotive manufacturing industry, the positioning accuracy of welding fixture locating pins plays a crucial role in the dimensional accuracy of car body assembly.
