Silicon nitride shaped parts
手机查看产品 浏览量: 0产品类别
材料及含量
产品特点
1、Bulk Density: ≥2.65-2.7 g/cm³.
2、Thermal Conductivity: 160 W/(m·K).
3、Apparent Porosity: ≤14-18%.
4、Compressive Strength at Room Temperature: ≥200 MPa.
5、High-Temperature Flexural Strength: ≥50 MPa.
6、Dimensions: Plate shape (150x20x10 mm), irregular shape (70x10x10 mm), etc.
产品详情
Introduction to Silicon Nitride Shaped Parts:
Silicon nitride shaped parts belong to a type of industrial ceramic, made from silicon nitride (Si₃N₄) material, and possess the following significant characteristics:
Physical properties: High strength, high toughness, high hardness (Mohs hardness 9-9.5), and self-lubricating properties. Its fracture toughness is superior to most other ceramic materials.
1. Temperature resistance: Recommended operating temperature is within 1000℃ in air and within 1400℃ in a protective atmosphere. It can maintain its strength without degradation up to 1200℃.
2. Chemical stability: Corrosion-resistant and oxidation-resistant, able to withstand most acids and bases at high temperatures.
3. Other characteristics: Non-magnetic, electrically insulating, and low thermal conductivity, making it suitable for insulation and heat insulation applications.

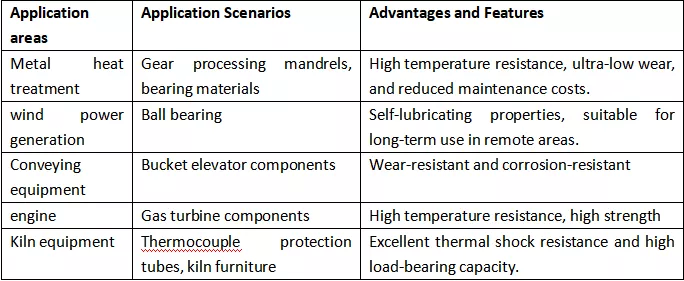

Application areas：
Silicon nitride shaped parts are widely used in the following fields:
