Silicon nitride ceramic piston liner
手机查看产品 浏览量: 0产品类别
材料及含量
产品特点
1. High temperature resistance: Maintains strength without degradation at temperatures up to 1200℃, with short-term temperature resistance up to 1400℃.
2. Thermal shock resistance: Low thermal expansion coefficient (3.2×10⁻⁶/℃), able to withstand drastic temperature changes without cracking.
3. Abrasion resistance: High hardness and self-lubricating properties, resulting in a low coefficient of friction.
4. Chemical stability: Resistant to most acids and bases (except hydrofluoric acid and concentrated strong alkalis).
5. High mechanical strength: Compressive strength can reach over 2000 MPa, and flexural strength is 300-600 MPa.
产品详情
Product Introduction of Silicon Nitride Ceramic Piston Liners:
Silicon nitride ceramic piston liners are high-performance engineering ceramic components made from silicon nitride (Si₃N₄) material. This material possesses excellent properties such as high strength, high hardness, high temperature resistance, and corrosion resistance, making it particularly suitable for use in high-temperature, high-load, and high-wear environments.

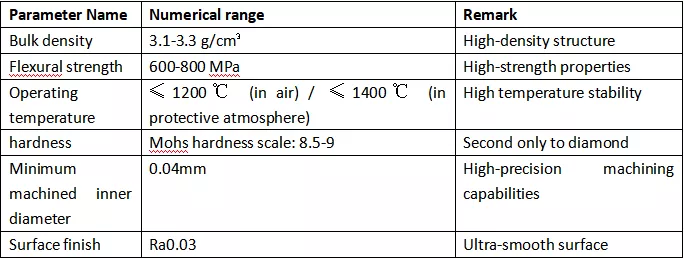

Technical Parameters：
Manufacturing Process：
1. Forming Process: Dry pressing, isostatic pressing.
2. Sintering Process: Reaction sintering, atmospheric pressure sintering, gas pressure sintering, hot pressing sintering.
3. Machining Accuracy: Up to 0.003mm, with excellent concentricity and parallelism.
Application Fields：
1. Automotive Industry: Engine piston rings, cylinder liners, turbochargers, etc.
2. Aerospace: High-temperature components for aircraft engines.
3. Mechanical Engineering: High-load mechanical seals, wear-resistant components.
4. Energy Equipment: Hydraulic system piston rods, pneumatic equipment components.

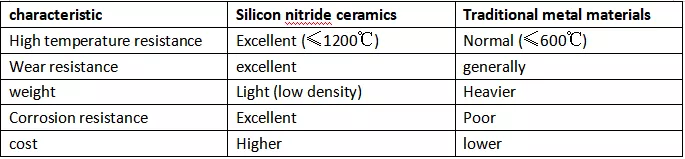

Product Advantages Comparison：
