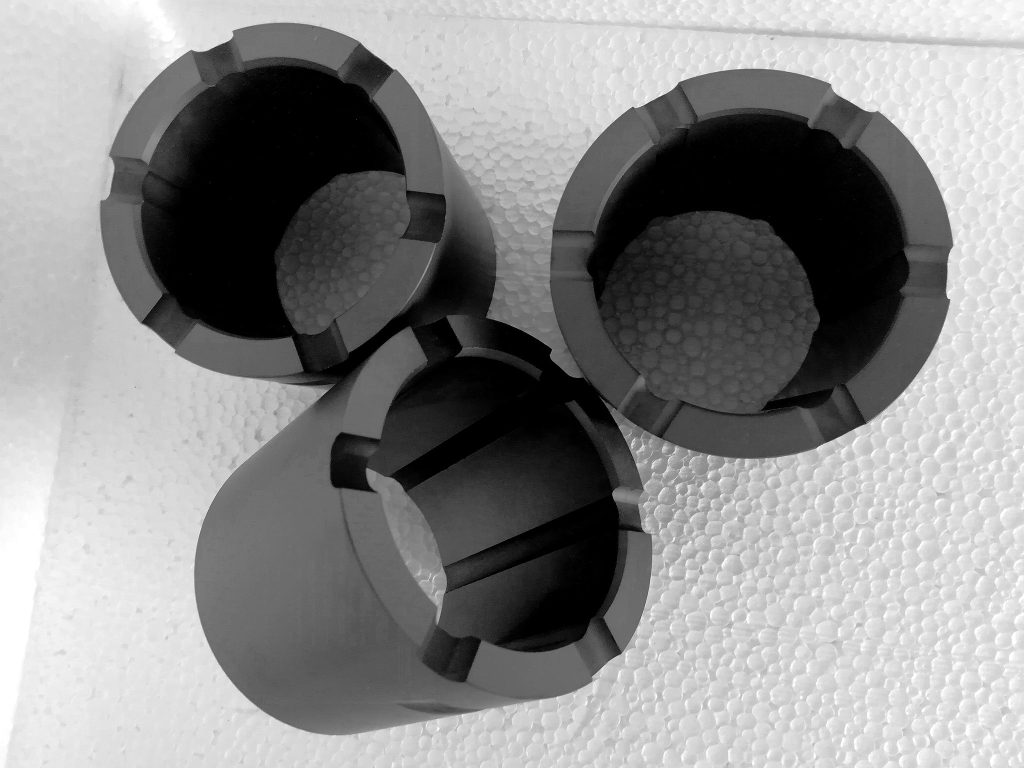

Industrial Ceramic Pressuring Sintered Silicon Carbide (SSIC) Ceramic Spiral Bushing View on your phone

Favorite

Category

Materials and content

-

Production Process

Raw Materials Silicon Carbide (SiC)
Powder Preparation Stirring Mill
Molding Isostatic Pressure Forming
Sintering Process Atmospheric Pressure Sintering
Processing Technology Internal Circular Grinding, Cylindrical Grinding, Flat Grinding, Grinding

Product Description

Model
Brand
-
Origin
-
Port
-
Business mode -
Production Process

Contacts

No contact information

查看更多联系方式

Features

Pressureless sintered silicon carbide (SSIC) is produced using very fine SiC powder containing sintering additives. It is processed using forming methods typical for other ceramics and sintered at 2,000 to 2,200° C in an inert gas atmosphere. As well as fine-grained versions, with grain sizes < 5 ?m, coarse-grained versions with grain sizes of up to 1.5 mm are available. SSIC is distinguished by high strength that stays nearly constant up to very high temperatures (approximately 1,600° C), maintaining that strength over long periods!
This material displays an extremely high corrosion resistance in acidic and basic media, and this too is maintained up to very high temperatures. The coarse-grained versions offer particular advantages. These properties are outstanding among high-temperature ceramics, and are complemented by high thermal shock resistance, high thermal conductivity, high resistance to wear, and a hardness close to that of diamond. Thus, SSIC is ideal for extremely demanding applications, for example, slip ring seals in chemical pumps, bearing bushes, high temperature burner nozzles, or as kiln furniture for very high application temperatures. The use of SSIC with graphite inclusions improves the performance of tribological systems.

Product Details

Pressureless sintered silicon carbide (SSIC) is produced using very fine SiC powder containing sintering additives. It is processed using forming methods typical for other ceramics and sintered at 2,000 to 2,200° C in an inert gas atmosphere. As well as fine-grained versions, with grain sizes < 5 ?m, coarse-grained versions with grain sizes of up to 1.5 mm are available. SSIC is distinguished by high strength that stays nearly constant up to very high temperatures (approximately 1,600° C), maintaining that strength over long periods!
This material displays an extremely high corrosion resistance in acidic and basic media, and this too is maintained up to very high temperatures. The coarse-grained versions offer particular advantages. These properties are outstanding among high-temperature ceramics, and are complemented by high thermal shock resistance, high thermal conductivity, high resistance to wear, and a hardness close to that of diamond. Thus, SSIC is ideal for extremely demanding applications, for example, slip ring seals in chemical pumps, bearing bushes, high temperature burner nozzles, or as kiln furniture for very high application temperatures. The use of SSIC with graphite inclusions improves the performance of tribological systems.

Items Unit Date
Hardness HS ≥110
Porosity Rate % <0.3
Density g/cm3 3.10-3.15
Compressive MPa >2200
Fractural Strength MPa >350
Coefficient of  expansion 10/°C 4.0
Content of Sic % ≥99
Thermal conductivity Cal/cm.s. °C 0.30
Elastic Modulus GPa ≥400
Temperature °C 1300

贸易信息

Online quote
Price MOQ Lead Time Customization Sample
$10 10 picece 20 days Yes Yes
Payment Terms
Shipping terms
