INNOVACERA Customized Heat Resistance Excellent Shock Resistant BN Boron Nitride Tube Bushing High Wet Resistance To Molten Metals Slags And Glass
View on your phone Views: 0Category
Materials and content
Markets
Production Process
Product Description
- Model
- Piece
- Brand
- INNOVACERA
- Origin
- China • Offer certificat of origin
- Port
- China
Contacts
Features
As a new type of advanced ceramic material, Boron Nitride has characteristics like ultra-long heat resistance and excellent thermal shock resistance. Also, it is easy to process into various complex shapes and has excellent corrosion resistance and wear resistance.
It has high resistance to wetting of molten metal, slag, glass, etc.
Product Details
Xiamen Innovacera Advanced Materials Co., Ltd (INNOVACERA) locates in the Special Economic Zone of Xiamen, Fujian Province. There are rich resources and convenient transportation.

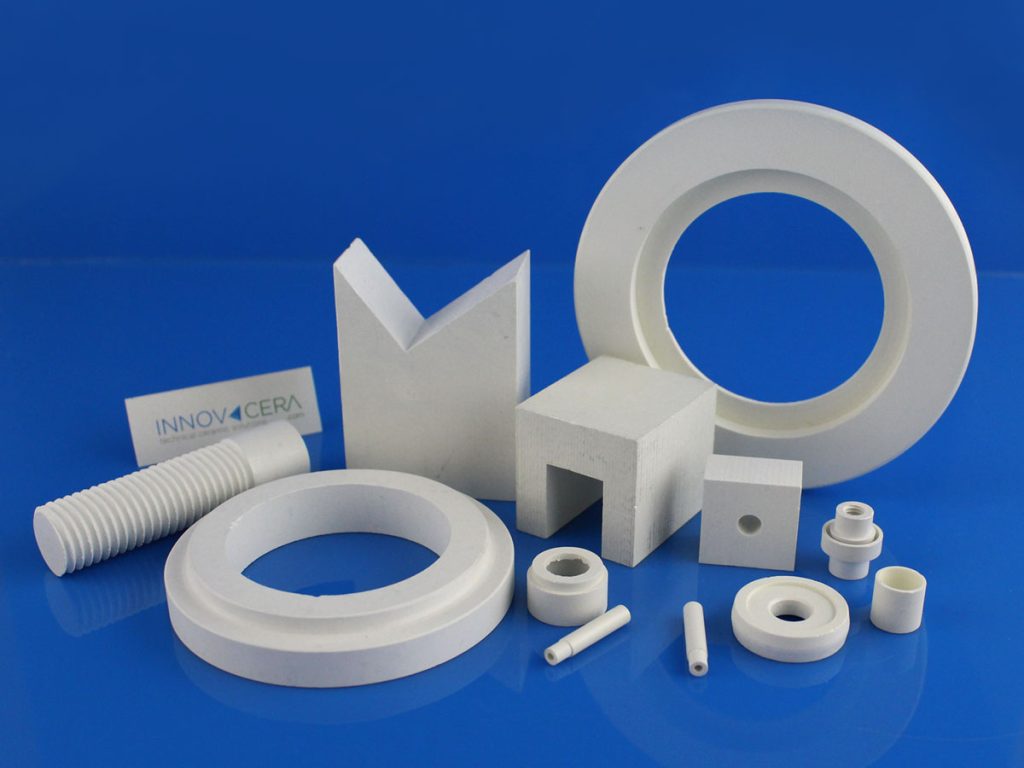

INNOVACERA engages in R&D, manufacturing and selling the products of advanced ceramic materials, including Alumina, Zirconia, Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and other advanced materials. Through different manufacturing processes, we supply metallized ceramic components, alumina heater, ceramic pump components, and other ceramic components as request.
Hexagonal Boron Nitride has a microstructure similar to that of Graphite. In both materials this structure, made up of layers of tiny platelets, is responsible for excellent machinability and low-friction properties. we called hexagonal boron nitride (HBN) or white graphite.
Material of Boron Nitride Ceramics
Pyrolytic Boron Nitride： 99.99% Boron Nitride*
99 Boron Nitride: Boron Nitride + Boric Oxide(B2O3)
CABN: Boron Nitride + Calcium Borate
ALBN: Boron Nitride + Al2BO3
ZRBN: Boron Nitride + Zirconium Oxide + Boric Oxide(B2O3)
ZABN: Boron Nitride + Zirconium Oxide + Aluminum Nitride + Al2BO3
SCBN: Boron Nitride + Silicon Carbon + Al2BO3
| Content | 99%BN | BN+AL | BN+SIC | BN+ZRO2 | BN+ALN |
| Density | 1.95-2.0 |
2.25-2.35 |
2.35-2.5 |
2.9-3.0 | 2.5-2.6 |
| Max Use Temper | 2100 | 1700 | 1700 | 1800 | 1800 |
| Thermal Expansion | 1.5 | 1.9 | 4.0 | 6.0 | 3.0 |
| Compreesive strgth | 58 | 150 | 175 | 200 | 185 |
| Thermal Conduvity | 30 | 35 | 40 | 30 | 55 |
| Application | Furance | Powder Metalurgy | Powder Metalurgy | Metal Casting | High Temperature Equipment |
