Product Details

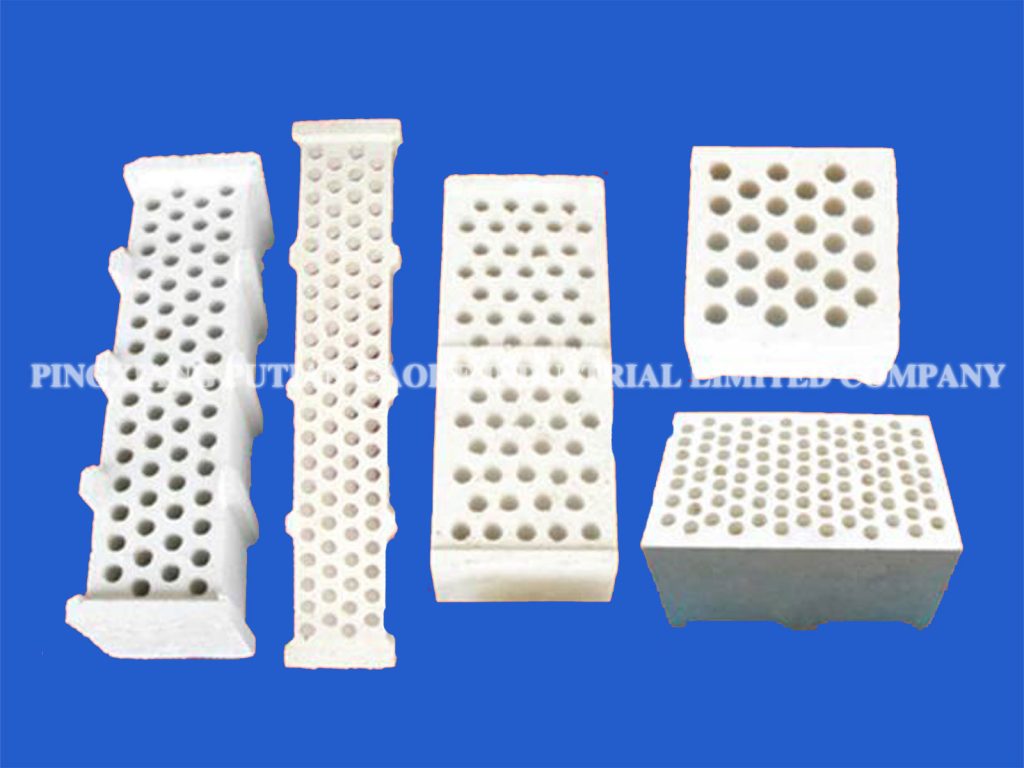

Baffle brick produced by our company can be matched with all kinds of regenerative combustion system and alveolate regenerator, the main role is to protect the alveolate regenerator regenerator, prolong the service life of the. The main material of corundum mullite corundum electrocautery, mullite, sintered mullite, alumina, sintering molding after baking and high temperature firing, size and structure can be produced according to customer requirements of the drawings, with good thermal shock stability, where heavy softening characteristics of high temperature, anti chemical erosion resistance good heat shock resistance, etc..
|
Dimension mm |
Aperture mm |
Wall thickness mm |
The heat transfer area ㎡/m3 |
The opening rate % |
|
200×100（80）×100 |
ф12-14 |
6-8 |
80（87） |
34（36） |
|
250×100（80）×100 |
ф12-14 |
6-8 |
80（87） |
34（36） |
|
300×100（80）×100 |
ф12-14 |
6-8 |
80（87） |
34（36） |
|
350×100（80）×100 |
ф12-14 |
6-8 |
80（87） |
34（36） |
|
400×100（80）×100 |
ф12-14 |
6-8 |
80（87） |
34 (36) |
|
450×100（80）×100 |
ф12-14 |
6-8 |
80（87） |
34 (36) |
|
500×100（80）×100 |
ф12-14 |
6-8 |
80（87） |
34 (36) |
|
600×100（80）×100 |
ф12-14 |
6-8 |
80（87） |
34 (36) |
